Cubic Volume

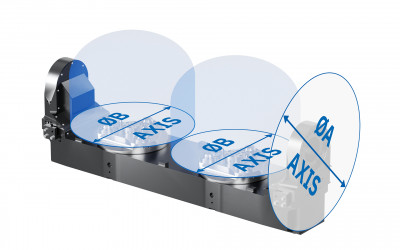

Strokes and Interference Cubes
The LiFLEX II 655 comes with strokes of 600 / 500 / 500 mm in X / Y / Z as well as an interference cube of 1000 mm in A-axis and interference cubes of 599 mm in B-axis.
LiFLEX II 655
Available Loading Options
The LiFLEX II 655 is available as a directly loaded machine, with pallet changer or with double trunnion.
Product Data
LiFLEX II 655 in Comparison
Further specifications on request. We reserve the right to make technical changes without prior notice.
| LiFLEX II 655 | LiFLEX II 344 | LiFLEX II 444 | LiFLEX II 766 | LiFLEX II 776 | LiFLEX II 1076 | LiFLEX II 1276 | LiFLEX II 1576 | |
|---|---|---|---|---|---|---|---|---|
| Axes (* Swivel head) | 4 / 5 | 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Independent axes | / | |||||||
| Additional Z₂-axis (optional) | - | - | - | - | - | - | - | - |
| Spindle distance | 600 mm | 320 mm | 400 / 450 mm | 750 mm | 750 mm | 1000 mm | 1200 mm | 1500 mm |
| Spindle torque (max.) | 100 / 200 Nm | 73 / 85 Nm | 100 / 200 / 500 Nm | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm |
| Spindle rpm (max.) | 8000 - 16000 rpm | 12000 - 20000 rpm | 6000 - 16000 rpm | 6000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm |
| Strokes (X / Y / Z) | 600 / 550 / 500 mm | 320 / 400 / 400 mm | 450 / 500 / 420 mm | 750 / 660 / 650 mm | 750 / 700 / 650 mm | 1000 / 700 / 650 mm | 1200 / 700 / 650 mm | 1500 / 700 / 650 mm |
| Spindle (HSK) | 63 / 100 | 63 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 |
| Tool magazine | 60 / 120 / 168 | 64 / 96 / 192 | 60 / 120 / 160 | 60 / 98 / 168 | 60 / 96 / 120 / 140 | 63 / 126 / 168 | 60 / 120 / 144 | 65 / 130 |
| Direct loading | X | X | X | X | X | X | X | X |
| Pallet changer | X | X | X | X | X | X | X | X |
| Double trunnion | X | X | X | X | X | - | - | - |
| Acceleration (linear axes, max.) | 12 m/s² | 12 m/s² | 9 m/s² | 9 m/s² | 12 m/s² | 12 m/s² | 12 m/s² | 12 m/s² |
| Rapid feed (linear axes, max.) | 80 m/min | 80 m/min | 90 m/min | 90 m/min | 80 m/min | 80 m/min | 80 m/min | 80 m/min |
| Interference cubes (A- / B-axes) | 1000 / 599 mm | 600 / 319 mm | 765 / 449 mm | 1200 / 749 mm | 1200 / 749 mm | 1600 / 999 mm | 1600 / 1199 mm | 1600 / 1499 mm |
| Process lubrication | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL |
