Cubic Volume

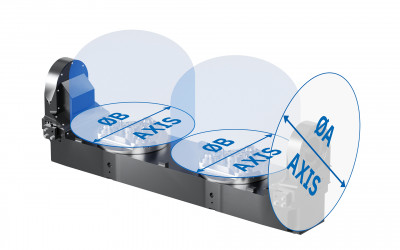

Strokes and Interference Cubes
The LiFLEX II 444 comes with strokes of 450 / 500 / 420 mm in X / Y / Z as well as an interference cube of 765 mm in A-axis and interference cubes of 449 mm in B-axis.
LiFLEX II 444
Available Loading Options
The LiFLEX II 444 is available as a directly loaded machine, with pallet changer or with double trunnion.
Product Data
LiFLEX II 444 in Comparison
Further specifications on request. We reserve the right to make technical changes without prior notice.
| LiFLEX II 444 | LiFLEX II 655 | LiFLEX II 766 | LiFLEX II 776 | LiFLEX II 1076 | LiFLEX II 1276 | LiFLEX II 1576 | |
|---|---|---|---|---|---|---|---|
| Axes (* Swivel head) | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Independent axes | / | / | |||||
| Additional Z₂-axis (optional) | - | - | - | - | - | - | - |
| Spindle distance | 400 / 450 mm | 600 mm | 750 mm | 750 mm | 1050 mm | 1200 mm | 1500 mm |
| Spindle torque (max.) | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm |
| Spindle rpm (max.) | 6000 - 16000 rpm | 8000 - 16000 rpm | 6000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm |
| Strokes (X / Y / Z) | 450 / 500 / 420 mm | 600 / 500 / 500 mm | 750 / 660 / 650 mm | 750 / 700 / 650 mm | 1050 / 700 / 650 mm | 1200 / 700 / 650 mm | 1500 / 700 / 650 mm |
| Spindle (HSK) | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 |
| Tool magazine | 60 / 120 / 160 | 60 / 120 / 168 | 60 / 98 / 168 | 60 / 96 / 120 / 140 | 63 / 126 / 168 | 64 / 128 / 160 | 65 / 130 |
| Direct loading | X | X | X | X | X | X | X |
| Pallet changer | X | X | X | X | X | X | X |
| Double trunnion | X | X | X | X | - | - | - |
| Acceleration (linear axes, max.) | 9 m/s² | 12 m/s² | 9 m/s² | 12 m/s² | 12 m/s² | 12 m/s² | 12 m/s² |
| Rapid feed (linear axes, max.) | 90 m/min | 80 m/min | 90 m/min | 80 m/min | 80 m/min | 80 m/min | 80 m/min |
| Interference cubes (A- / B-axes) | 765 / 449 mm | 1000 / 599 mm | 1200 / 749 mm | 1200 / 749 mm | 1600 / 1049 mm | 1600 / 1199 mm | 1600 / 1499 mm |
| Process lubrication | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL |
