Homepage / Machining Centers / Product Overview / LiFLEX IV Four-Spindle Machines / LiFLEX IV 244
LiFLEX IV Four-Spindle Machine

LiFLEX IV 244

Discover the LiFLEX IV 244 four-spindle machining center for 5-axis horizontal machining.

Discover our portfolio

At a Glance

LiFLEX IV 244

4- and 5-axis configuration
(354"/s²) 9 m/s² acceleration
(246"/min) 75 m/min rapid feed
Process lubrication: dry, coolant, MQL
i-Technology by LiCON
Cubic Volume

Strokes and Interference Cubes

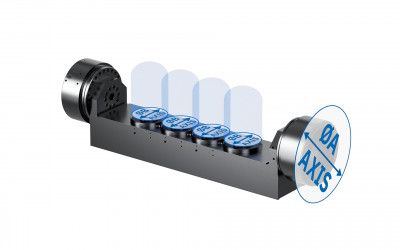

Grafik der Kubatur der LiFLEX IV Vierspindler

The LiFLEX IV 244 is the smallest four-spindle machine in the range and, with optional i-technology and independent Z-axis, enables minimum tolerances with high output and flexibility.

With a spindle distance of (9") 225 mm and a interference cube of Ø (30") 765 mm (A-axis) and Ø (9") 224 mm (B-axis), it is optimally designed for machining small, high-precision parts.

Its compact design reduces space requirements while maintaining high performance.

LiFLEX IV 244

Available Loading Options

The LiFLEX IV 244 is available as a directly loaded machine or with double trunnion.

LiCON Beladeoption Direktbeladung LiCON Beladeoption Doppelschwenkträger

Direct loading is used when the loading and unloading times take only a fraction of the machining time.

The double trunnion is recommended for processes with short machining times and frequent changeover operations.

Product Data

LiFLEX IV 244 in Comparison

Further specifications on request. We reserve the right to make technical changes without prior notice.

LiFLEX IV 244 LiFLEX IV 355 LiFLEX IV 366
Axis (* Swivel head) 4 / 5 4 / 5 4 / 5
Independent axis
Spindle distance (9") 225 mm (12") 300 mm (15") 375 mm
Spindle torque (max.) (74 ft-lb) 100 Nm (74 / 148 Nm ft-lb) 100 / 200 Nm (74 / 148 Nm ft-lb) 100 / 200 Nm
Spindle rpm (max.) 12000 rpm 8000 - 16000 rpm 8000 - 16000 rpm
Strokes (X / Y / Z) (9"/19"/17") 225 / 470 / 420 mm (12"/20"/20") 300 / 500 / 500 mm (15"/26"/26") 375 / 660 / 650 mm
Spindle (HSK) 63 63 / 100 63 / 100
Tool magazine 80 / 120 72 / 156 72 / 156
Direct loading X X X
Pallet changer - - -
Double trunnion X X X
Acceleration (linear axis, max.) (354"/s²) 9 m/s² (354"/s²) 9 m/s² (354"/s²) 9 m/s²
Rapid feed (linear axis, max.) (246"/min) 75 m/min (246"/min) 75 m/min (246"/min) 75 m/min
Interference cubes (A- / B-axis) (30"/9") 765 / 224 mm (39"/12") 1000 / 299 mm (39"/15") 1000 / 374 mm
Process lubrication dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL
