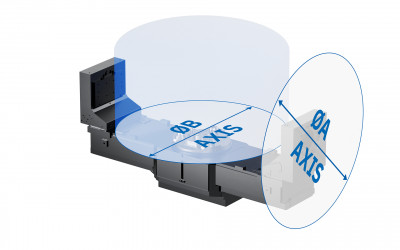

Strokes and Interference Cubes
The LiFLEX I 755 comes with strokes of 750 / 550 / 500 mm in X / Y / Z and an interference cube of 765 mm in A-axis and 700 mm in B-axis.
LiFLEX I 755 in Comparison
Further specifications on request. We reserve the right to make technical changes without prior notice.
LiFLEX I 755 | LiFLEX I 1276 | LiFLEX I 12126 | LiFLEX I 12126 HD | |
---|---|---|---|---|
Axes | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
Independent axes | - | - | - | - |
Additional Z₂-axis (optional) | - | - | - | - |
Spindle distance | - | - | - | - |
Spindle torque (max.) | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm |
Spindle rpm (max.) | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm |
Strokes (X / Y / Z) | 750 / 550 / 500 mm | 1250 / 700 / 650 mm | 1250 / 1250 / 650 mm | 1250 / 1250 / 650 mm |
Spindle (HSK) | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 |
Tool magazine | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request |
Direct loading | X | X | X | X |
Pallet changer | X | X | X | X |
Double trunnion | X | - | - | - |
Acceleration (linear axes, max.) | 12 m/s² | 12 m/s² | 12 m/s² | 15 m/s² |
Rapid feed (linear axes, max.) | 80 m/min | 80 m/min | 140 m/min | 150 m/min |
Interference cubes (A- / B-axes) | 700 / 700 mm | 1600 / 1600 mm | 1600 / 1600 mm | 1600 / 1600 mm |
Process lubrication | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL |
