LiFLEX II Twin-Spindle Machine

LiFLEX II 1276

Discover the LiFLEX II 1276 twin-spindle machining center for 5-axis horizontal machining.

At a Glance

LiFLEX II 1276

4- and 5-axis configuration
12 m/s² acceleration
80 m/min rapid feed
Process lubrication: dry, coolant, MQL
Available with i³-Technology
Cubic Volume

Strokes and Interference Cubes

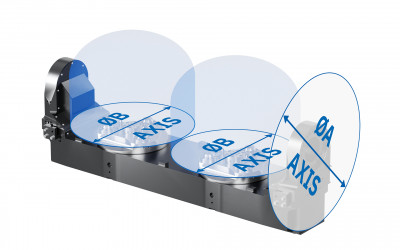

Grafik der Kubatur der LiFLEX II Doppelspindler

The LiFLEX II 1276 comes with strokes of 1200 / 700 / 650 mm in X / Y / Z as well as an interference cube of 1600 mm in A-axis and interference cubes of 1119 mm in B-axis.

LiFLEX II 1276

Available Loading Options

The LiFLEX II 1276 is available as a directly loaded machine.

LiCON Beladeoption Direktbeladung

Direct loading is used when the loading and unloading times take only a fraction of the machining time.

Product Data

LiFLEX II 1276 in Comparison

LiFLEX II 1276 LiFLEX II 444 LiFLEX II 766 LiFLEX II 776 LiFLEX II 1076
Axes 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5
Independent axes / /
Spindle distance 1200 mm 450 mm 750 mm 750 mm 1050 mm
Spindle torque (max.) 100 - 500 Nm 100 - 500 Nm 100 - 500 Nm 100 - 200 Nm 100 - 500 Nm
Spindle rpm (max.) 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm
Strokes (X / Y / Z) 1200 / 700 / 650 mm 450 / 500 / 420 mm 750 / 660 / 650 mm 750 / 700 / 650 mm 1050 / 700 / 650 mm
Spindle (HSK) 63 / 100 63 / 100 63 / 100 63 63 / 100
Tool magazine 60 / 120 60 - 96 / 120 - 160 60 - 96 / 120 - 160 60 - 96 / 120 - 160 60 / 120
Direct loading X X X X X
Pallet changer - X X X X
Double trunnion - X X X -
Acceleration (linear axes, max.) 12 m/s² 9 m/s² 9 m/s² 9 m/s² 10 m/s²
Rapid feed (linear axes, max.) 80 m/min 90 m/min 90 m/min 80 m/min 100 m/min
Interference cubes (A- / B-axes) 1600 / 1199 mm 765 / 449 mm 1200 / 749 mm 1200 / 749 mm 1600 / 1049 mm
Process lubrication dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL
