Cubic Volume

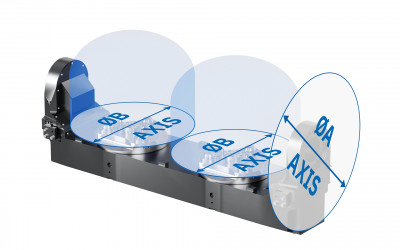

Strokes and Interference Cubes
The LiFLEX II 1076 comes with travels of 1050 / 700 / 650 mm in X / Y / Z as well as an interference cube of 1600 mm in A-axis and interference cubes of 1049 mm in B-axis.
LiFLEX 1076
Available Loading Options
The LiFLEX II 1076 is available as a directly loaded machine or with pallet changer.
Product Data
LiFLEX II 1076 in Comparison
Further specifications on request. We reserve the right to make technical changes without prior notice.
| LiFLEX II 1076 | LiFLEX II 444 | LiFLEX II 655 | LiFLEX II 766 | LiFLEX II 776 | LiFLEX II 1276 | LiFLEX II 1576 | |
|---|---|---|---|---|---|---|---|
| Axes (* Swivel head) | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Independent axes | / | ||||||
| Additional Z₂-axis (optional) | - | - | - | - | - | - | - |
| Spindle distance | 1050 mm | 400 / 450 mm | 600 mm | 750 mm | 750 mm | 1200 mm | 1500 mm |
| Spindle torque (max.) | 100 / 200 Nm | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 Nm | 100 / 200 Nm |
| Spindle rpm (max.) | 8000 - 16000 rpm | 6000 - 16000 rpm | 8000 - 16000 rpm | 6000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm |
| Strokes (X / Y / Z) | 1050 / 700 / 650 mm | 450 / 500 / 420 mm | 600 / 550 / 500 mm | 750 / 660 / 650 mm | 750 / 700 / 650 mm | 1200 / 700 / 650 mm | 1500 / 700 / 650 mm |
| Spindle (HSK) | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 |
| Tool magazine | 63 / 126 / 168 | 60 / 120 / 160 | 60 / 120 / 168 | 60 / 98 / 168 | 60 / 96 / 120 / 140 | 60 / 120 / 144 | 65 / 130 |
| Direct loading | X | X | X | X | X | X | X |
| Pallet changer | X | X | X | X | X | X | X |
| Double trunnion | - | X | X | X | X | - | - |
| Acceleration (linear axes, max.) | 12 m/s² | 9 m/s² | 12 m/s² | 9 m/s² | 12 m/s² | 12 m/s² | 12 m/s² |
| Rapid feed (linear axes, max.) | 80 m/min | 90 m/min | 80 m/min | 90 m/min | 80 m/min | 80 m/min | 80 m/min |
| Interference cubes (A- / B-axes) | 1600 / 1049 mm | 765 / 449 mm | 1000 / 599 mm | 1200 / 749 mm | 1200 / 749 mm | 1600 / 1199 mm | 1600 / 1499 mm |
| Process lubrication | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL |
