LiFLEX II 766 im LiCON Innovation Center
LiFLEX II Twin-Spindle Machine

LiFLEX II 766

Discover the LiFLEX II 766 double-spindle machining center for 5-axis horizontal machining.

At a Glance

LiFLEX II 766

4- and 5-axis configuration
12 m/s² acceleration
90 m/min rapid feed
Process lubrication: dry, coolant, MQL
Available with i- or i³-Technology
Cubic Volume

Strokes and Interference Cubes

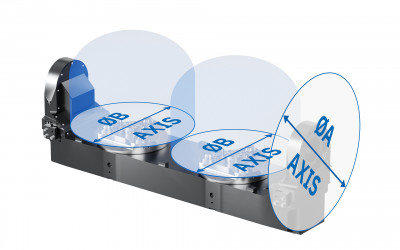

Grafik der Kubatur der LiFLEX II Doppelspindler

The LiFLEX II 766 comes with strokes of 750 / 660 / 650 mm in X / Y / Z as well as an interference cube of 1200 mm in the A-axis and interference cubes of 749 mm in the B-axis.

LiFLEX II 766

Available Loading Options

The LiFLEX II 766 is available as a directly loaded machine, with pallet changer or with double trunnion.

LiCON Beladeoption Direktbeladung LiCON Beladeoption Palettenwechsler LiCON Beladeoption Doppelschwenkträger

Direct loading is used when the loading and unloading times take only a fraction of the machining time.

For shorter machining times and frequent changeover operations, the pallet changer is recommended.

The double trunnion is recommended for processes with short machining times and frequent changeover operations.

Product Data

LiFLEX II 766 in Comparison

LiFLEX II 766 LiFLEX II 444 LiFLEX II 776 LiFLEX II 1076 LiFLEX II 1276
Axes 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5
Independent axes / /
Spindle distance 750 mm 450 mm 750 mm 1050 mm 1200 mm
Spindle torque (max.) 100 - 500 Nm 100 - 500 Nm 100 - 200 Nm 100 - 500 Nm 100 - 500 Nm
Spindle rpm (max.) 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm 6000 - 16000 rpm
Strokes (X / Y / Z) 750 / 660 / 650 mm 450 / 500 / 420 mm 750 / 700 / 650 mm 1050 / 700 / 650 mm 1200 / 700 / 650 mm
Spindle (HSK) 63 / 100 63 / 100 63 63 / 100 63 / 100
Tool magazine 60 - 96 / 120 - 160 60 - 96 / 120 - 160 60 - 96 / 120 - 160 60 / 120 60 / 120
Direct loading X X X X X
Pallet changer X X X X -
Double trunnion X X X - -
Acceleration (linear axes, max.) 9 m/s² 9 m/s² 9 m/s² 10 m/s² 12 m/s²
Rapid feed (linear axes, max.) 90 m/min 90 m/min 80 m/min 100 m/min 80 m/min
Interference cubes (A- / B-axes) 1200 / 749 mm 765 / 449 mm 1200 / 749 mm 1600 / 1049 mm 1600 / 1199 mm
Process lubrication dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL
