Cubic Volume

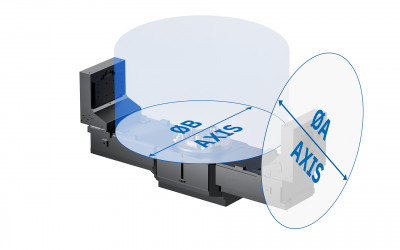

Strokes and Interference Cubes
The LiFLEX I 1276 comes with strokes of 1250 / 700 / 650 mm in X / Y / Z as well as a interference cube of 1600 mm in A-axis and 1600 mm in B-axis.
LiFLEX I 1276
Available Loading Options
The LiFLEX I 1276 is available as a directly loaded machine or with pallet changer.
Product Data
LiFLEX I 1276 in Comparison
Further specifications on request. We reserve the right to make technical changes without prior notice.
| LiFLEX I 1276 | LiFLEX I 755 | LiFLEX I 12126 | LiFLEX I 12126 HD | |
|---|---|---|---|---|
| Axes | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Independent axes | - | - | - | - |
| Additional Z₂-axis (optional) | - | - | - | - |
| Spindle distance | - | - | - | - |
| Spindle torque (max.) | 100 / 200 Nm | 100 / 200 / 500 Nm | 100 / 200 Nm | 100 / 200 Nm |
| Spindle rpm (max.) | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm | 8000 - 16000 rpm |
| Strokes (X / Y / Z) | 1250 / 700 / 650 mm | 750 / 550 / 500 mm | 1250 / 1250 / 650 mm | 1250 / 1250 / 650 mm |
| Spindle (HSK) | 63 / 100 | 63 / 100 | 63 / 100 | 63 / 100 |
| Tool magazine | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request | 30 / 60 / 96 / 120 / 160 / 176 – extensions on request |
| Direct loading | X | X | X | X |
| Pallet changer | X | X | X | X |
| Double trunnion | - | X | - | - |
| Acceleration (linear axes, max.) | 12 m/s² | 12 m/s² | 9 m/s² | 15 m/s² |
| Rapid feed (linear axes, max.) | 80 m/min | 80 m/min | 140 m/min | 150 m/min |
| Interference cubes (A- / B-axes) | 1600 / 1600 mm | 700 / 700 mm | 1600 / 1600 mm | 1600 / 1600 mm |
| Process lubrication | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL | dry, coolant, MQL |
