Homepage / Machining Centers / Product Overview / LiFLEX I Single-Spindle Machines / LiFLEX I 17136
LiFLEX I Einspindler

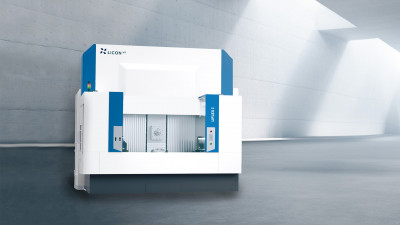

LiFLEX I 17136

Discover the LiFLEX I 17136 single-spindle machining center for 5-axis horizontal machining.

At a Glance

LiFLEX I 17136

4- and 5-axis configuration
12 m/s² acceleration
100 m/min rapid feed
Process lubrication: dry, coolant, MQL
Cubic Volume

Strokes and Interference Cubes

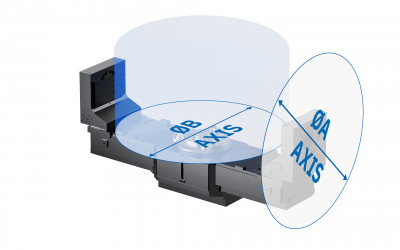

Grafik der Kubatur der LiFLEX I Einspindler

The LiFLEX I 12126 comes with strokes of 1700 / 1300 / 650 mm in X / Y / Z and an interference cube of 2300 mm in A-axis and 1850 mm in B-axis.

LiFLEX I 12126

Loading Options

The LiFLEX I 17136 is available as a directly loaded machine.

LiCON Beladeoption Direktbeladung

Direct loading is used when the loading and unloading times take only a fraction of the machining time.

Product Data

LiFLEX I 17136 in Comparison

Further specifications on request. We reserve the right to make technical changes without prior notice.

LiFLEX I 17136 LiFLEX I 755 LiFLEX I 1276 LiFLEX I 12126 LiFLEX I 12126 HD LiFLEX I 20136
Axis 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5 4
Independent axis - - - - - -
Additional Z₂-axis (optional) X - - - - X
Spindle distance - - - - - -
Spindle torque (max.) 100 Nm (74 / 148 ft-lb) 100 / 200 Nm (74 / 148 / 258 ft-lb) 100 / 200 / 350 Nm (74 / 148 / 258 ft-lb) 100 / 200 / 350 Nm (74 / 148 / 258 / 367 ft-lb) 100 / 200 / 350 / 500 Nm 100 Nm
Spindle rpm (max.) 12000 - 30000 rpm 8000 - 16000 rpm 8000 - 16000 rpm 8000 - 16000 rpm 8000 - 16000 rpm 12000 - 30000 rpm
Strokes (X / Y / Z) 1700 / 1300 / 650 mm (30"/22"/22") 750 / 550 / 550 mm (49"/ 28"/26") 1250 / 700 / 650 mm (49"/49"/26") 1250 / 1250 / 650 mm (47"/ 49"/ 26") 1250 / 1250 / 650 mm 2000 / 1300 / 650 mm
Spindle (HSK) 63 63 / 100 63 / 100 63 / 100 63 / 100 63
Tool magazine 60 / 96 / 120 / 160 / 176 – extensions on request 60 / 96 / 120 / 160 / 176 – extensions on request 60 / 96 / 120 / 160 / 176 – extensions on request 60 / 96 / 120 / 160 / 176 – extensions on request 60 / 96 / 120 / 160 / 176 – extensions on request 60 / 96 / 120 / 160 / 176 – extensions on request
Direct loading X X X X X X
Pallet changer - X X - - -
Double trunnion - X - - - -
Acceleration (linear axis, max.) 12 m/s² (472"/s²) 12 m/s² (472"/s²) 12 m/s² (354"/s²) 9 m/s² (590"/s²) 15 m/s² 12 m/s²
Rapid feed (linear axis, max.) 100 m/min (262"/min) 80 m/min (262"/min) 80 m/min (459"/min) 140 m/min (492"/min) 150 m/min 100 m/min
Interference cubes (A- / B-axis) 1750 (2200 with Z₂) / 1750 mm DL, PC: (39"/31") 1000 / 800 mm | DT: (28"/28") 700 / 700 mm (63"/63") 1600 / 1600 mm (63"/63") 1600 / 1600 mm (62"/63") 1600 / 1600 mm 2300 / - mm
Process lubrication dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL
