Homepage / Machining Centers / Product Overview / LiFLEX IV Four-Spindle Machines / LiFLEX IV 366
LiFLEX IV Four-Spindle Machine

LiFLEX IV 366

Discover the LiFLEX IV 366 four-spindle machining center for 5-axis horizontal machining.

At a Glance

LiFLEX IV 366

4- and 5-axis configuration
(354"/s²) 9 m/s² acceleration
(246"/min) 75 m/min rapid feed
Process lubrication: dry, coolant, MQL
i-Technology by LiCON
Cubic Volume

Strokes and Interference Cubes

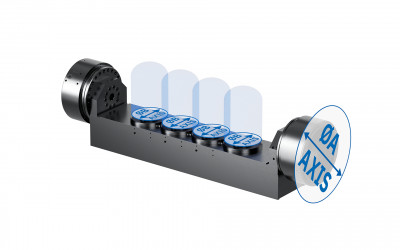

Grafik der Kubatur der LiFLEX IV Vierspindler

The LiFLEX IV 366 comes with strokes of 375 / 660 / 650 mm (15"/26"/26") in X / Y / Z as well as an interference cube of (39") 1000 mm in A-axis and interference cubes of (15") 375 mm in B-axis.

LiFLEX IV 366

Available Loading Options

The LiFLEX IV 366 is available as a directly loaded machine or with double trunnion.

LiCON Beladeoption Direktbeladung LiCON Beladeoption Doppelschwenkträger

Direct loading is used when the loading and unloading times take only a fraction of the machining time.

The double trunnion is recommended for processes with short machining times and frequent changeover operations.

Discover our portfolio

Product Data

LiFLEX IV 366 in Comparison

Further specifications on request. We reserve the right to make technical changes without prior notice.

LiFLEX IV 366 LiFLEX IV 244 LiFLEX IV 355
Axis (* Swivel head) 4 / 5 4 / 5 4 / 5
Independent axis
Spindle distance (15") 375 mm (9") 225 mm (12") 300 mm
Spindle torque (max.) (74 / 148 Nm ft-lb) 100 / 200 Nm (74 ft-lb) 100 Nm (74 / 148 Nm ft-lb) 100 / 200 Nm
Spindle rpm (max.) 8000 - 16000 rpm 12000 rpm 8000 - 16000 rpm
Strokes (X / Y / Z) (15"/26"/26") 375 / 660 / 650 mm (9"/19"/17") 225 / 470 / 420 mm (12"/20"/20") 300 / 500 / 500 mm
Spindle (HSK) 63 / 100 63 63 / 100
Tool magazine 72 / 156 80 / 120 72 / 156
Direct loading X X X
Pallet changer - - -
Double trunnion X X X
Acceleration (linear axis, max.) (354"/s²) 9 m/s² (354"/s²) 9 m/s² (354"/s²) 9 m/s²
Rapid feed (linear axis, max.) (246"/min) 75 m/min (246"/min) 75 m/min (246"/min) 75 m/min
Interference cubes (A- / B-axis) (39"/15") 1000 / 374 mm (30"/9") 765 / 224 mm (39"/12") 1000 / 299 mm
Process lubrication dry, coolant, MQL dry, coolant, MQL dry, coolant, MQL
